AUTO MARKING  MACHINE

SYMKOS Auto Marking Machine , has the advantages of low cost, high flexibility, environmental protection, It's easy to control and operation by the computer system

Save Time

High Precision

Fast Process

Auto Marking Machine - Pen Type

Auto marking machine - Handler

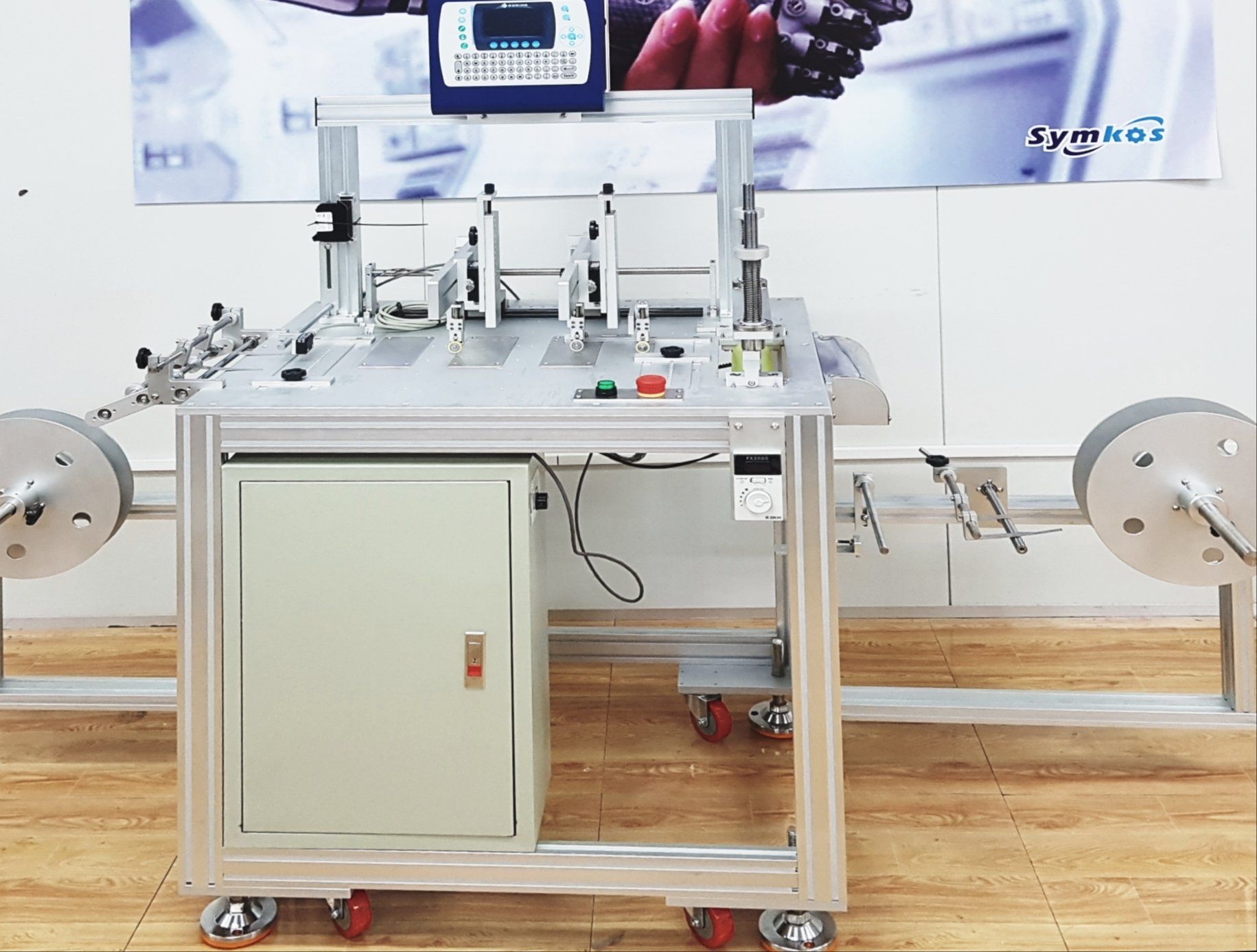

Auto Marking - Feeding Machine

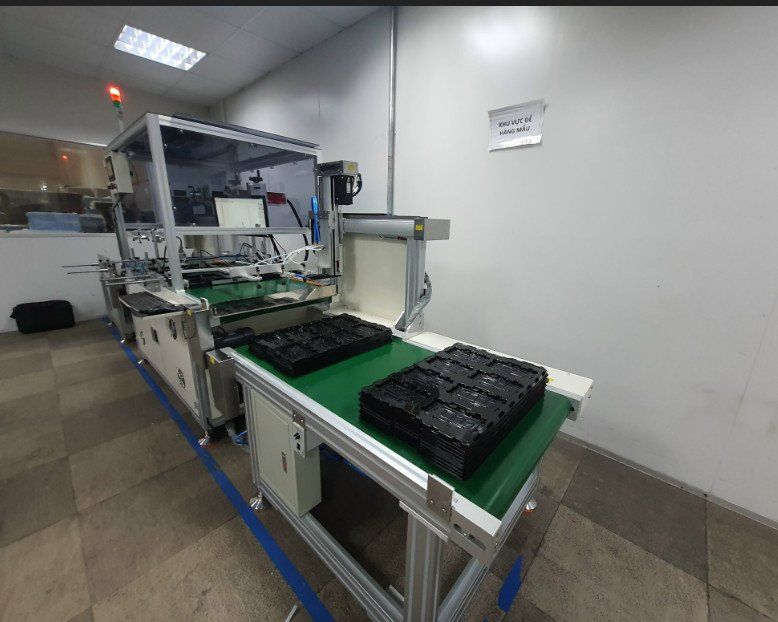

Marking Line- Load / Unload

 SYMKOS

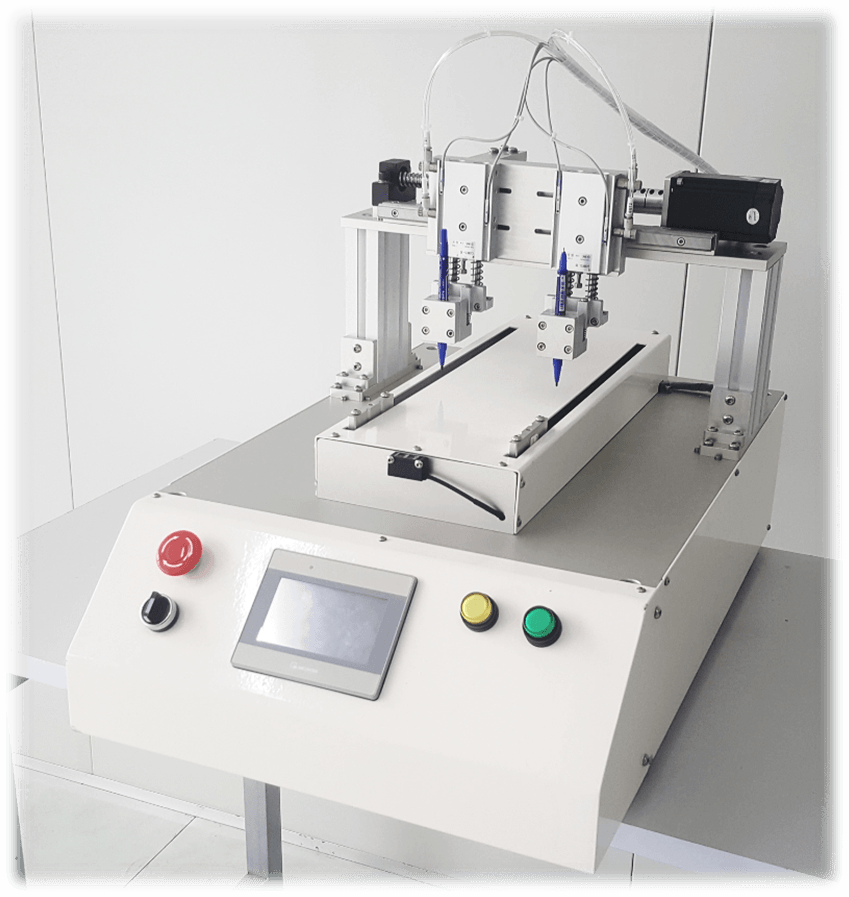

AUTO MARKING MACHINE - PEN TYPE

Flexible to change for Different Models

LCiA Design 3 Direction Motion

(X Axis by Servo motor/Y Axis by Stepping Motor/Z Axis by Cylinder)


Dual Pens to marking 2 EA / 1 time

(Can select same time marking / step by step marking)


Pitch between 2 pens can be adjusted

Shorter Job change time by re-loading the program


Material Loading / Unloading on Stepping Conveyor


Easy change Marking Pens by one touch

Counting Q’ty of Marking for Change new pen

Inquiry

Machine Size (mm): L800 x w400 x H500


Station Size (mm): L250 x W200 x H5


Electricity: 220V 50~60Hz



Talk to our technician

SYMKOS

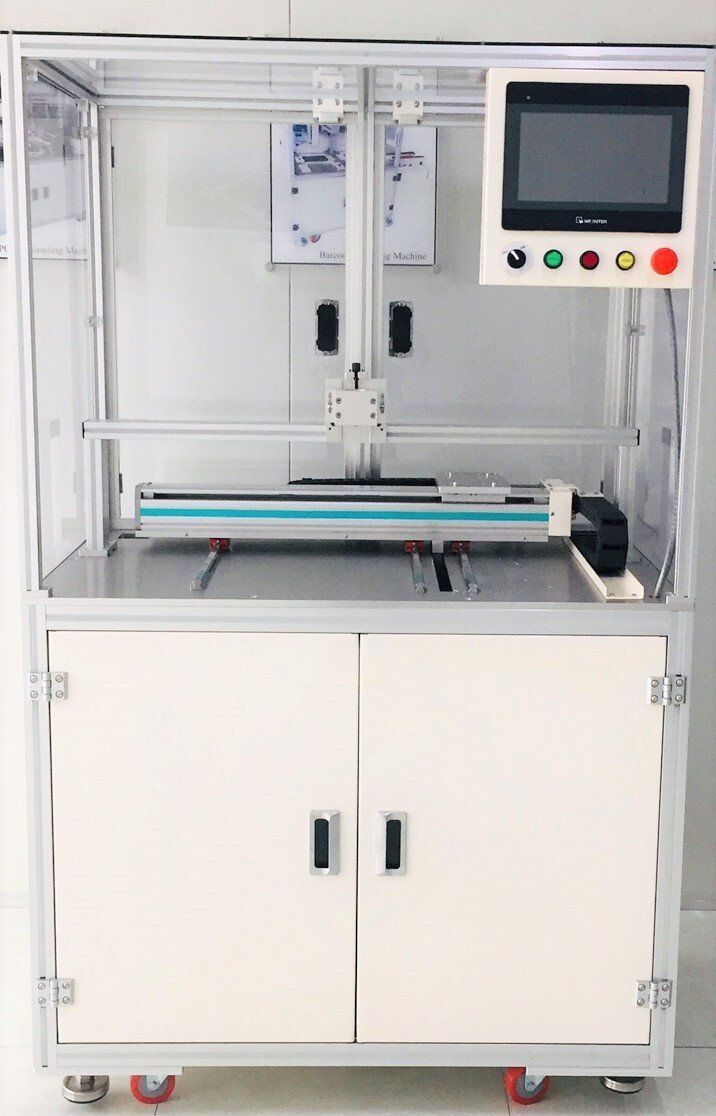

AUTO MARKING MACHINE ( HANDLER )

Part 1: X/Y Single Robot Motion Part

Move tray jig X/Y co-ordination based on position setting and marking point

Using Standard single robot

Part 2: Tray Jig / Tray Table

Flexible setting based on each size of material tray

Easy centering tray for precise position of marking

Part 3: Marking Head

Easy adjustment & maintenance by one touch structure

Easy manual rotation to adjust marking head angle

Part 4: Control Unit

Easy Job change by reloading program

Easy management by HMI interface


Inquiry

 - Model : S-AM18


- Electricity : 220V 50-60Hz , 1Kw


- Weight : 150 Kg


- Machine Size: W900 x L900 x H1650


- Support TRAY Max(mm): L350 x W300 x T20

Talk to our Technician
