AGV - AUTOMATE GUILDED VEHICLE

Used for indoor intralogistics tasks. It can autonomously transport items and navigate freely in its environment. As a automated manipulated vehicles, it makes the labor of the workers easier and improves business efficiency.

AGV Pull Type

AGV Loading Type

Button

AGV Heavy Loading Type

AGV Cart Pull Type

SYMKOS

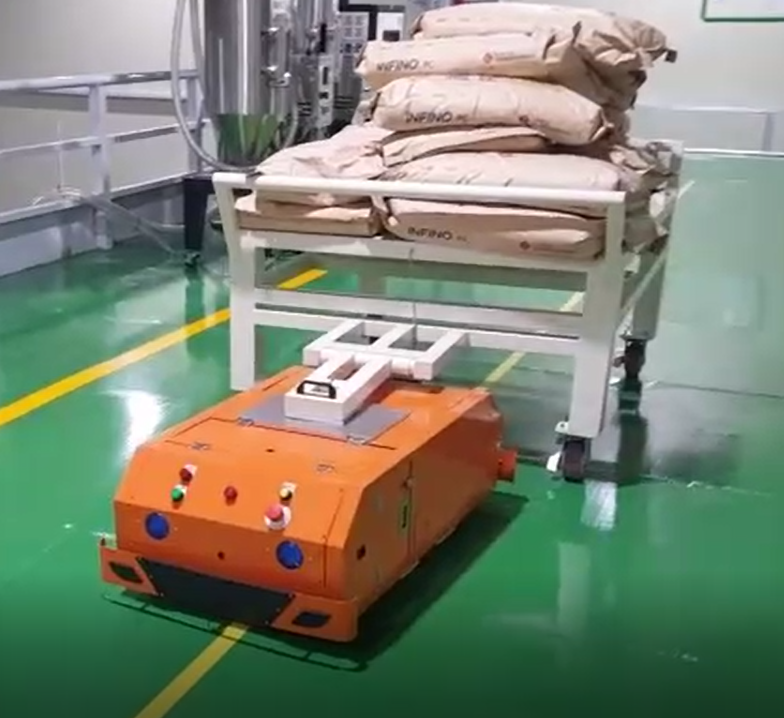

AGV - PULL TYPE

- Wireless Calling & Communication

- Running Information Monitoring System

- RFID applied for stop and run

- Smart Guide LED Sensor;

- Normal Tape can be used for the AGV lane

- Light to Heavy Load can be applied: From material supply to heavy mold

Inquiry

- Size (L x W x H)mm 950 x 650 x 350

- Quantity of Wheel 4ea

- Total Weight 100Kg

- Control Unit: HMI 4.7 INCH , PLC – FX3U (Mitsubishi)

- PB or Lithium Battery 24 VDC/ 100Ah

- BLDC motor 8 Nm , Driver and Gear box 2sets 200W / 1 motor 24 ~ 48 VDC

- Battery Charger(Combine with 220 AC/ 24 DC inverter) 24 ~ 30 Voltage, Charging Current 80 Ah

- Area Sensor / Safety Area PX24 (Panasonic) 2sets 24 VDC

- Safety Bumper Sensor ( Omron) 2sets 24VDC

- Stop Station Reader : ID Card Reader 5 ~ 30 m/min

- Guiding IR Sensor 2ea 24VDC 16 BIT

- Running Speed Max 40 m/min

- Load weight 800Kg

Talk to our Technician

SYMKOS

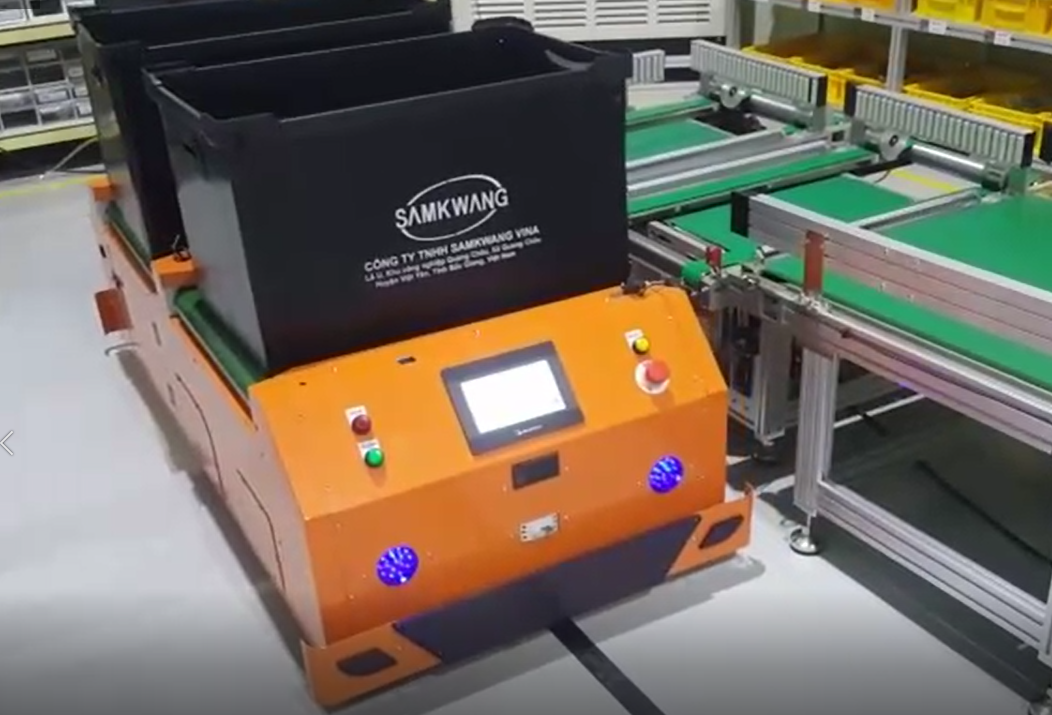

AGV - LOADING TYPE

- Wireless Calling & Communication

- Running Information Monitoring System

- RFID applied for stop and run

- Smart Guide LED Sensor; Normal Tape can be used for the AGV lane

- Area Sensor applied as well as bumper sensor for better safety

- Customized Total AGV Operation System

- Light to Heavy Load can be applied: From material supply to heavy mold

Inquiry

- Size (L x W x H)mm 950 x 650 x 350

- Quantity of Wheel 4ea

- Total Weight 100Kg

- Control Unit: HMI 4.7 INCH , PLC – FX3U (Mitsubishi)

- PB or Lithium Battery 24 VDC/ 100Ah

- BLDC motor 8 Nm , Driver and Gear box 2sets 200W / 1 motor 24 ~ 48 VDC

- Battery Charger(Combine with 220 AC/ 24 DC inverter) 24 ~ 30 Voltage, Charging Current 80 Ah

- Area Sensor / Safety Area PX24 (Panasonic) 2sets 24 VDC

- Safety Bumper Sensor ( Omron) 2sets 24VDC

- Stop Station Reader : ID Card Reader 5 ~ 30 m/min

- Guiding IR Sensor 2ea 24VDC 16 BIT

- Running Speed Max 40 m/min

- Load weight 800Kg

Talk to our Technician

SYMKOS

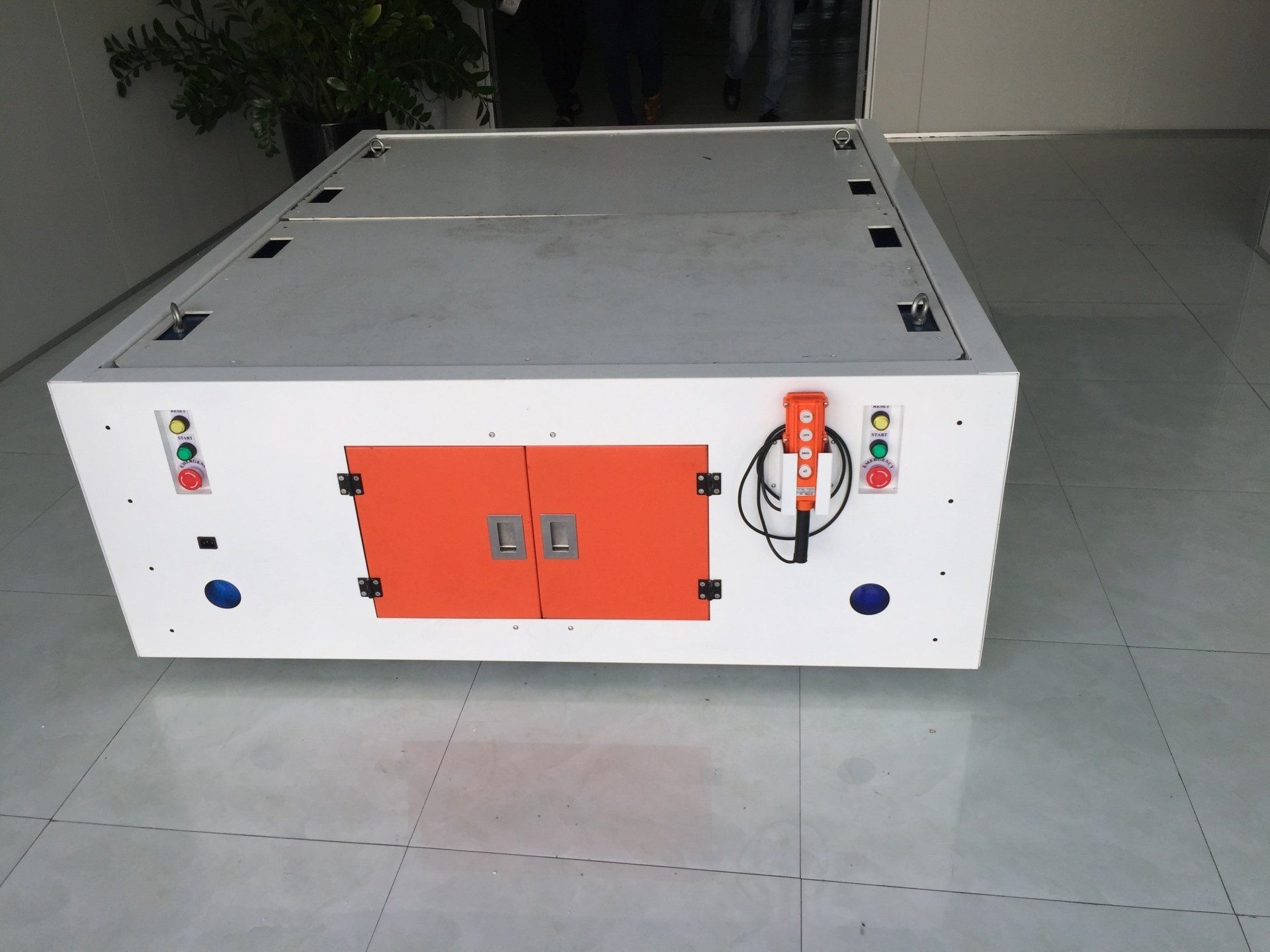

AGV - HEAVY LOADING TYPE

- Heavy 5 ton Mold loaded & transfer

- Wireless Calling & Communication

- Running Information Monitoring System

- RFID applied for stop and run

- Smart Guide LED Sensor; Normal Tape can be used for the AGV lane

- Area Sensor applied as well as bumper sensor for better safety

- Customized Total AGV Operation System

- Light to Heavy Load can be applied: Frpm material supply to heavy mold

Inquiry

+ AGV Size (L x W x H): 1750 x 1350 x 650, 600 ~ 800Kg

+ Support Caster Wheel: D200 x T68mm 4pcs

+ Driver Wheel: D254 x T115mm 2pcs

+ Lead Battery: 12V -200 Ah 4ea

+ DC/ AC Inverter and Charger: 3000 W – 40~70 AH Charging

+ Motor Inverter - SV008Ic5-1: 0.8kw / 220 VAC 2ea

+ AC Driver Motor and Gear Box: 3P–220VAC 0.75KW Gear rate 1:30 2ea

+ Tape Guiding Sensor: 24 VDC – 16 bit 2ea

+ Station Reader / ID Card: 24 VDC

+ Control Unit: PLC – Fx3U-32MT , FX-ADP -RS

+ Bumper Sensor: PLC – Fx3U-32MT , FX-ADP -RS 8ea

+ Safety Area Sensor: PX22 , 24VDC 2ea

+ Running Speed: 5 ~ 30 m/min

+ Stopping Speed: 1~10 m/min

Talk to our Technician

SYMKOS

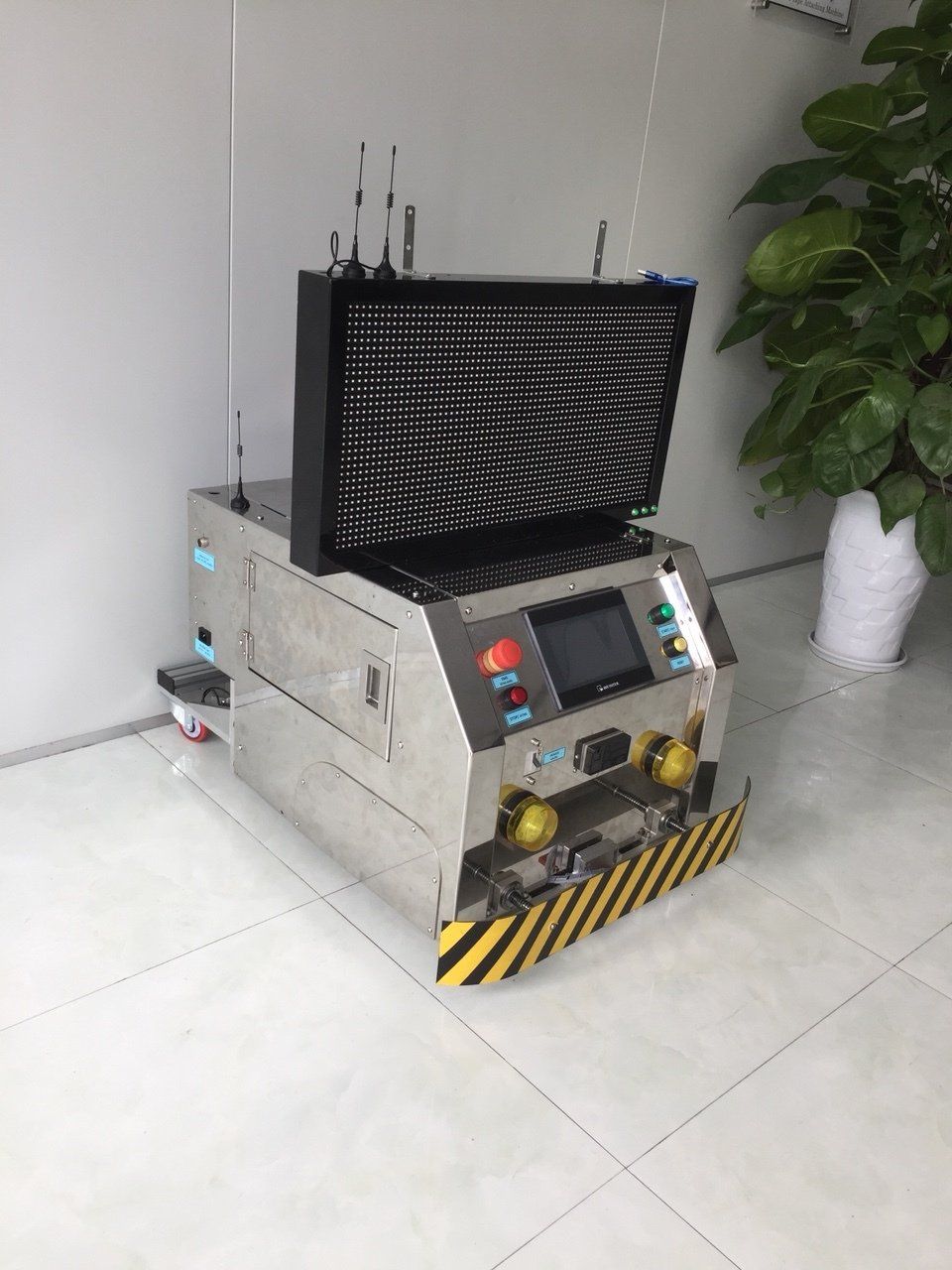

AGV - CART PULL TYPE

- Wireless Calling & Communication

- Running Information Monitoring System

- RFID applied for stop and run

- Smart Guide LED Sensor; Normal Tape can be used for the AGV lane

- Area Sensor applied as well as bumper sensor for better safety

- Customized Total AGV Operation System

- Light to Heavy Load can be applied: From material supply to heavy mold

Inquiry

- Size (L x W x H)mm 700 x 500 x 300

- Quantity of Wheel 4ea

- Total Weight 60Kg

- Control Unit: HMI 4.7 INCH , PLC – FX3U (Mitsubishi)

- PB or Lithium Battery 24 VDC/ 100Ah

- BLDC motor 8 Nm , Driver and Gear box 2sets 200W / 1 motor 24 ~ 48 VDC

- Battery Charger(Combine with 220 AC/ 24 DC inverter) 24 ~ 30 Voltage, Charging Current 80 Ah

- Area Sensor / Safety Area PX24 (Panasonic) 2sets 24 VDC

- Safety Bumper Sensor ( Omron) 2sets 24VDC

- Stop Station Reader : ID Card Reader 5 ~ 30 m/min

- Guiding IR Sensor 2ea 24VDC 16 BIT

- Running Speed Max 40 m/min

- Load weight 800Kg

Talk to our Technician
