MEASURE MACHINE

AUTO MEASURING MACHINE

SYMKOS Auto simultaneous measurement machine perform high productivity , smart measurement resolution

Simple process

High Precision

Cost saving

Tape Thickness Measure Machine - 2 in 1

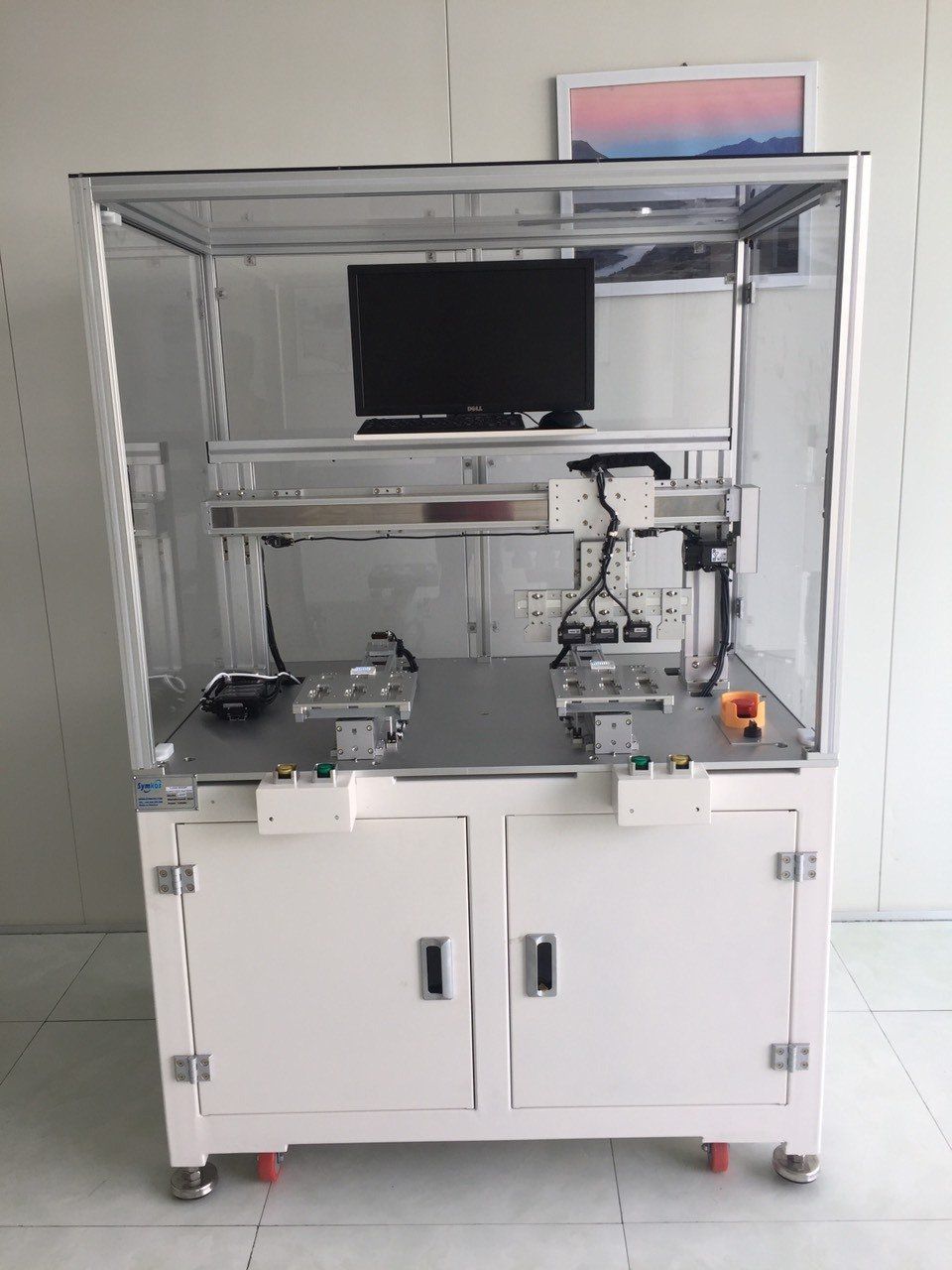

Laser Height Measuring Machine

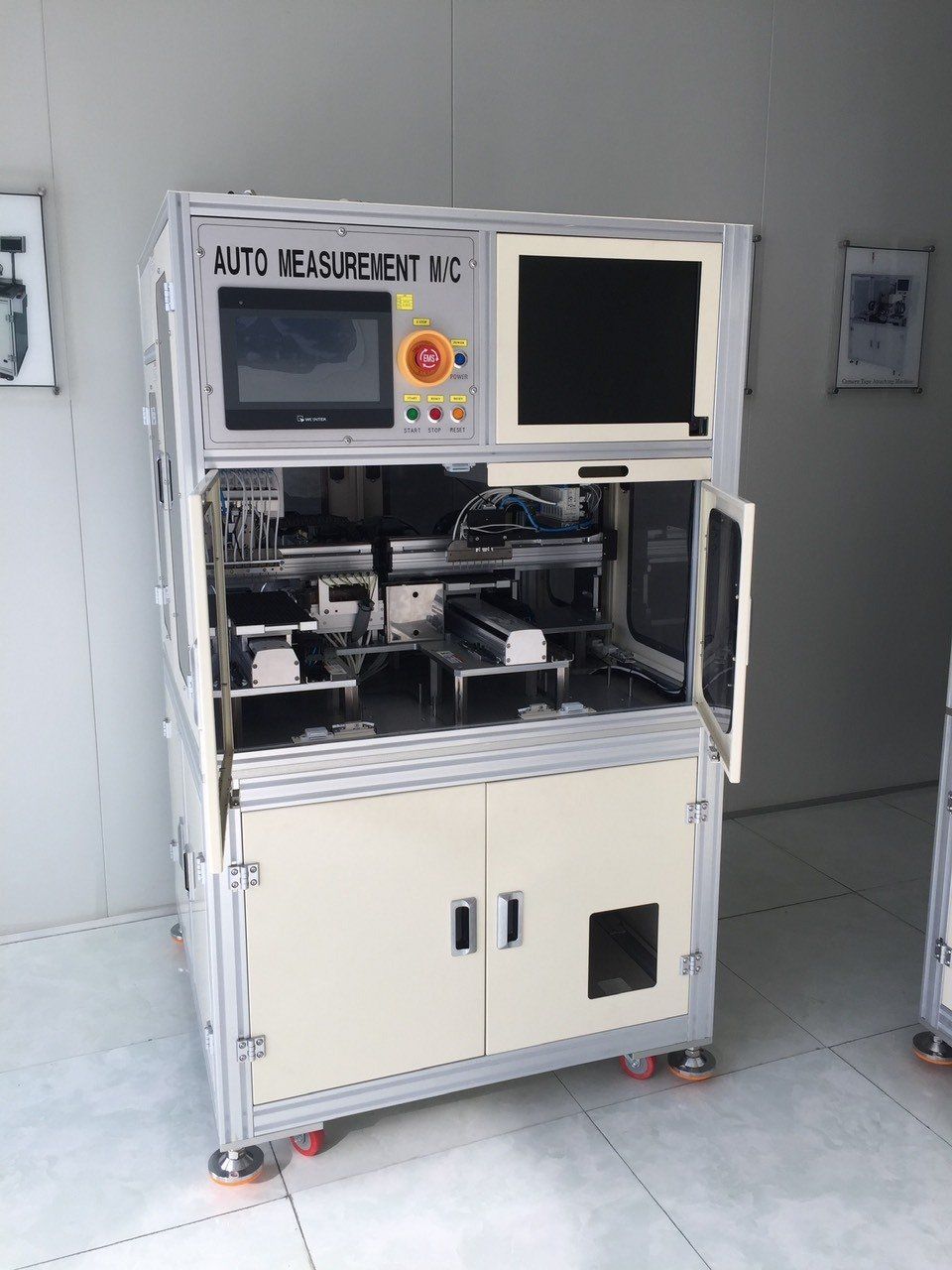

MIC Measure Machine

SYMKOS

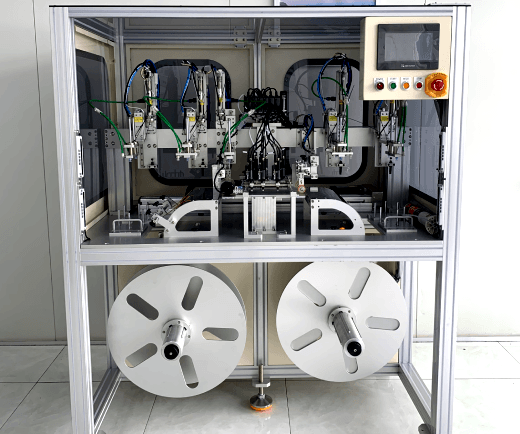

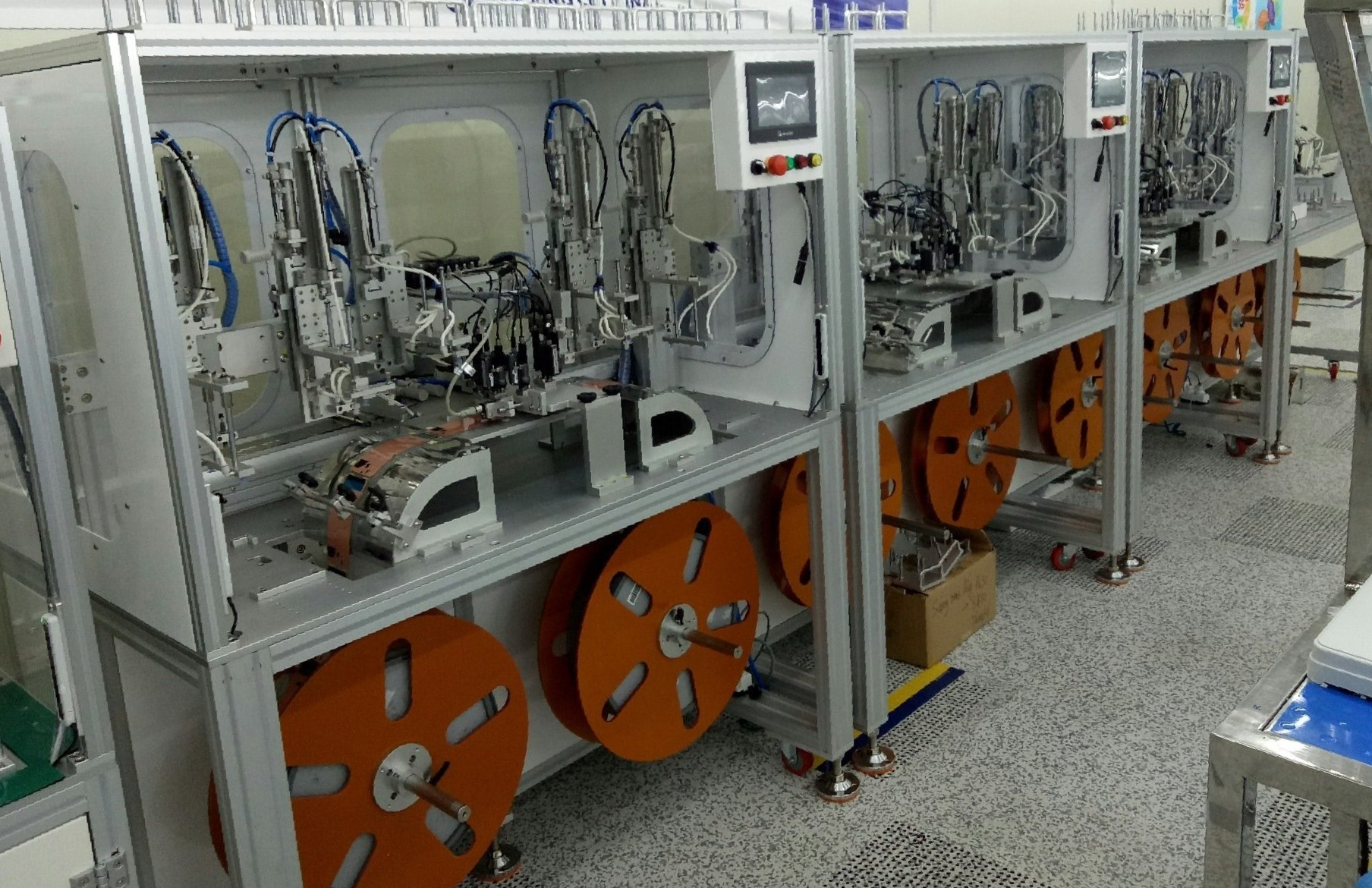

AUTO THICKNESS MEASURE MACHINE (2 IN 1)

Part 1: Auto Motion Table Part

 Single robot motion & vacuum to fix product. Table motion is flexible for model change

Part 2: Thickness Sensor Part  : 6 Separating Sensor to check 5 Position . Flexible Model change by position change   - KEYENCE Thickness Sensor Part

Part 3: Auto Picker/Loading/Unloading/NG Box

 5 Pickers for 2 material Loading Box / 2 Material Unloading Box / 1 NG Box

Part 4: Winding- Unwinding Part

For tape roll application, select to Disable motion table, Auto Picker and Install guider part

Part 5: Auto Pen Marking : Marking NG Product

Part 6: Control Unit

Easy setting and change Model , Change parameter of machine by HMI  . Data Save by CSV. File to USB and Transfer data to any computer Server


Inquiry

 Model : S-AMT19-2


 Electricity : 220V 50-60Hz , 0.3Kw


 Weight : 150Kg


 Machine Size(mm): L1300 x W700 x H1600


 Max Product Size (mm): L200 x W150


 Machine Capacity:  Sheet( Max 17Kpcs), Roll(Max 22Kpcs per 20hrs)

Talk to our Technician

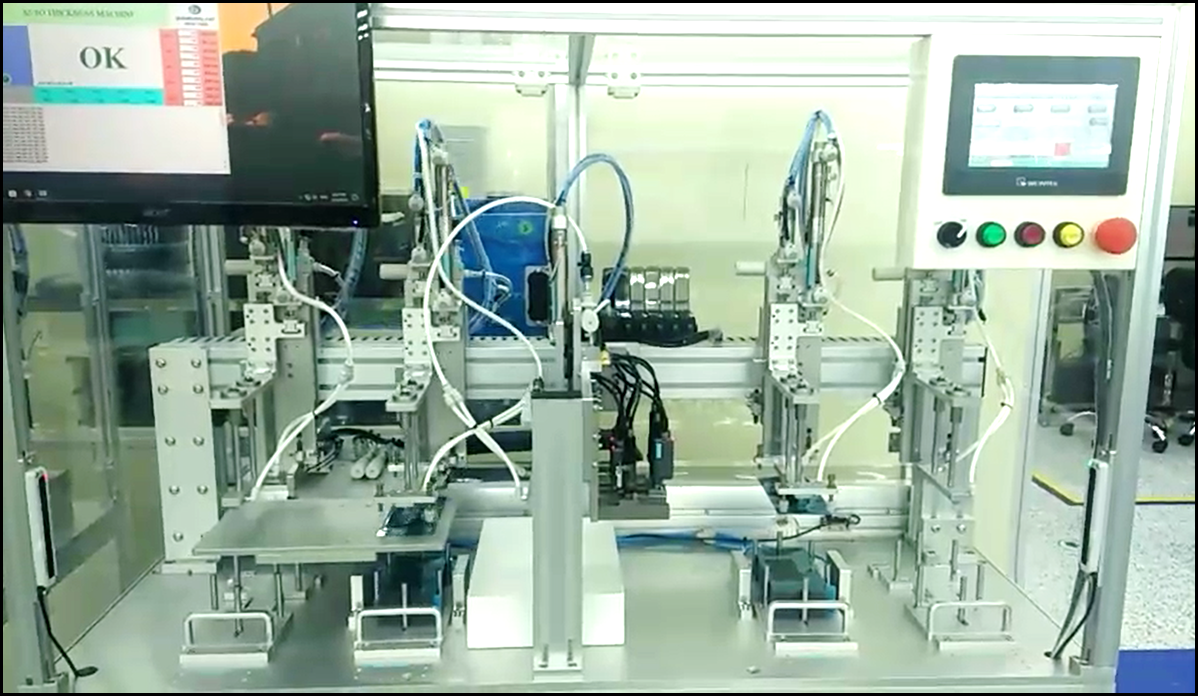

AUTO THICKNESS MEASURE MACHINE

Photo By: John Doe
Button

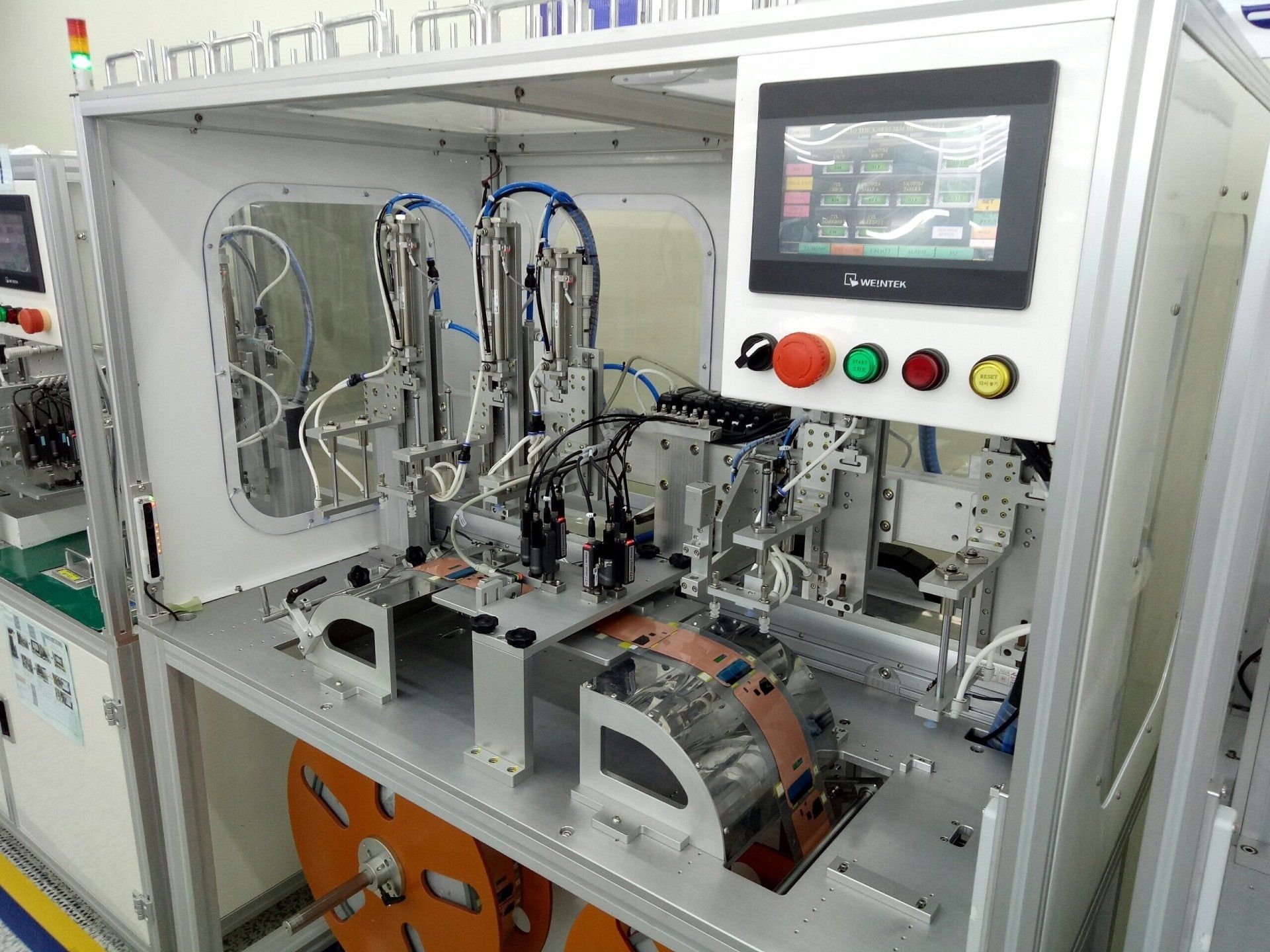

AUTO THICKNESS MEASURE MACHINE

Photo By: John Doe
Button

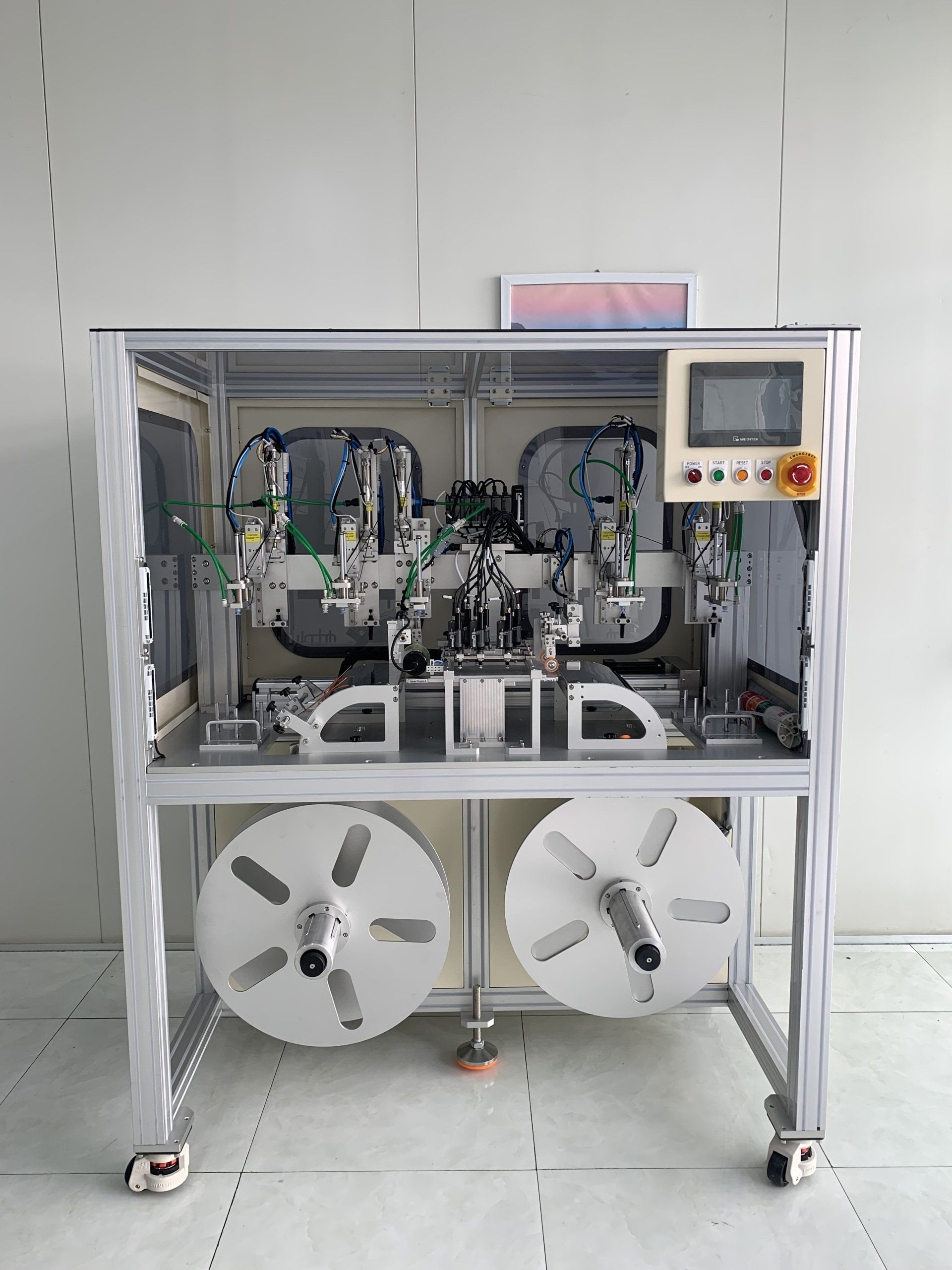

AUTO THICKNESS MEASURE MACHINE

Photo By: John Doe
Button

SYMKOS

AUTO HEIGHT MEASURE MACHINE

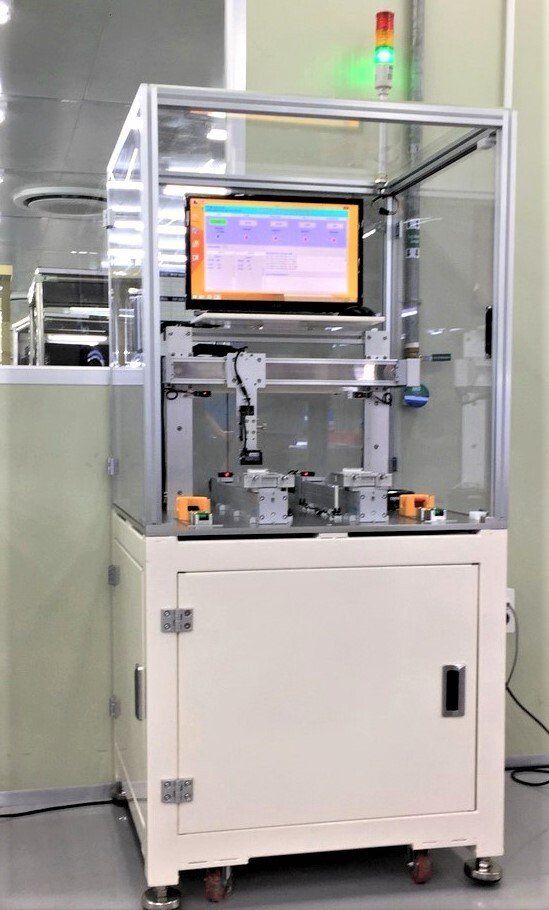

Laser Height Measuring Machine

Photo By: John Doe
Button

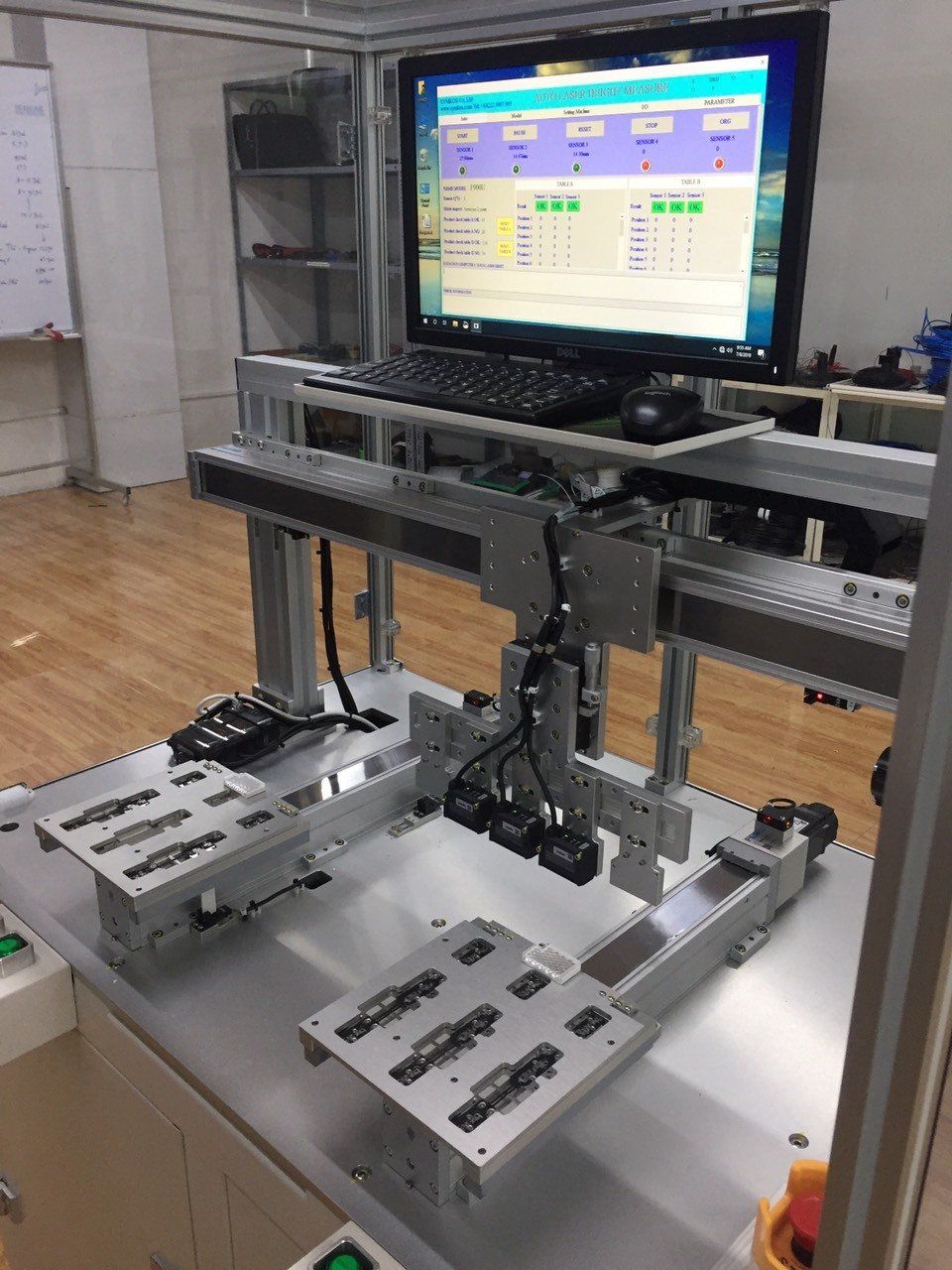

Laser Height Measuring Machine

Photo By: John Doe
Button

Laser Height Measuring Machine

Photo By: John Doe
Button

1.Portable Type: Simple & Cheap Height Gauge by LASER Sensor


1.Auto Type: Setting position & Auto measure by LASER Sensor


+ Measuring any parts or jigs simply Ex)FPCB, SMT Carrier Jig, Metal parts


+ Data Display & Save


+ Easy setting Spec Upper/Lpwer Limit by HMI screen


+ Portable type: PC connection,USB Cable Connection, Measuring Data Output


+ Easy Calibration: Bloch Shape Master Jig provided

inquiry

+ Power: AC 220V (24VDC Adaptor)


+ Base Size (mm): L500 X W400 X H300



...Movable X-Y stage can be selected



Talk to our Technician
